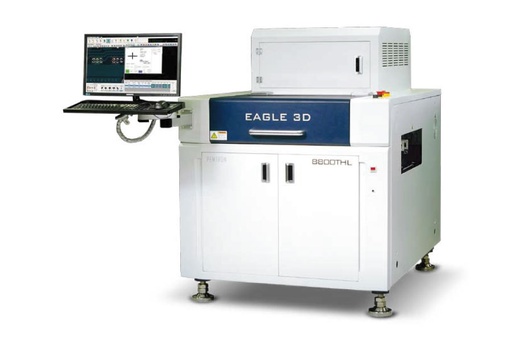

3D AOI Inline 3D Automated Optical Inspection Systems
PEMTRON


Through Hole 3D AOI System Bottom
Side Head 3D AOI
▶ Bottom Camera Head Gantry
▶ Simultaneous Inspection Algorithm (2D and 3D)
▶ Telecentric Lens offers Higher Detection Accuracy
▶ High-Speed CPU & Image Processing
▶ User-Friendly GUI
▶ Built in Library Management System
▶ Offline Real-Time Debug Station

3D Measurements Free from Shadows and Reflections
-The EAGLE 3D 8800 AOI uses 8-way projection for 3D measurements on all models to minimize
errors due to shadow effects, and performs 100% 2D & 3D concurrently in all FOV areas.
-This significantly reduces the false call while providing near-perfect detection.

Accurate and convenient inspection using side camera
Four high-definition cameras on the side and a dedicated algorithm optimized for both use and
side inspection is available for real-time inspection.

-4-Way Side Camera (Optional)
-Internal bridge detection not found in Top Camera
-Connector internal detectable
-Convenient Teaching Using Existing Algorithm

27mm high part 3D measurement/inspection
EAGLE 3D AOI offers the option of inspecting up to 30mm in height components with a unique PEMTRON technology.

Clever system engineering: efficient and sustainable

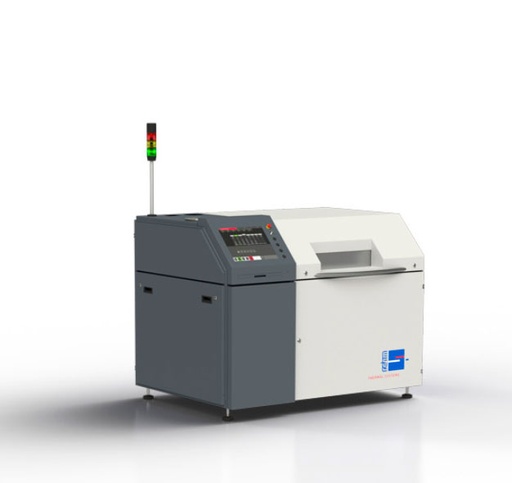

The CondensoXC is a space-saving, powerful system for laboratory applications, small series production and prototyping. Exact profiling by means of the injection principle and the option of soldering under an inert atmosphere provides optimum soldering results. Void-free soldering can also be carried out easily with the vacuum option, which increases the reliability of assemblies significantly. With a footprint of just 2.3m², this system is specially designed for small series and is also ideal for prototype production. As a batch system, it can be used flexibly, irrespective of the production environment.

CondensoXC loading concept
1. Loading
2. Soldering/Vacuum
3. Cooling
4. Unloading

Manual front loading
The CondensoXC is manually loaded with pre-assembled product carriers from the front on the operator’s side. In this way, the assemblies can be easily placed on and removed from the interchangeable product carriers. The product carrier is on a rail system to ensure full access to the working area. Assemblies up to 500 x 540mm (W x L) can be placed on the product carriers.

Gentle cooling
After the soldering process, the assembly is cooled to the desired temperature using convection. The bulkhead of the cooling zone is then opened automatically, and the product carrier can be withdrawn on a rail for easy unloading.

- Manual loading axis (Batch System)
- Manual loading of the process chamber via drawer with carrier
- Vacuum Package
- Air cooling section
- Basic workpiece carrier
- Basic color: SN 700 light basic
- Frame color: RAL 7015 slate grey
- VisuII 7.3.x with Windows 10 Enterprise LTSC

HANWHA
DECAN F2

The DECAN series models can handle a wide range of components
and maximize productivity with various PCB transfer systems.

· Secures the applicability to components and conveyor flexibility.
· Reduces production time by optimizing the motion sequence.
· Reinforces odd-shape component recognition by applying 3D lighting system

Features

Productivity

Dual Lane PCB Transfer System
Realizes zero PCB loading/unloading time by loading the PCB on the opposite lane and having it stand by during operation (productivity increases by 15% compared to a single lane)


Flexible Production

Supporting Modular Conveyor System for Various Production Environments
Allows optimum combination of conveyor modules by applying a modular conveyor replaceable on site (Shuttle ↔ Dual).


High Reliability

Prevents Reverse Insertion by Recognizing the Polarity Mark at the Bottom Surface of a Component
Recognizes the polarity mark at the bottom surface of a component using the 3-stepped 3D lighting.

Stage Camera 1EA is included

HANWHA
DECAN S2

High Performance

Productivity Improvement
Increases the speed and accuracy for placing microchips (03015) Applies dual-lane PCB transfer system (productivity increases by 15% compared to a single lane)
이미지
High Reliability

Adopts a Linear Motor to Realize Low Noise and Vibration
Applies the twin servo control and linear motor to the Y-axis to realize low noise and vibration.

Flexible Production

Supporting Modular Conveyor System for Various Production Environments
Possible to produce various models depending on the Modular Conveyor System replaceable on site.

Easy Operation

Reinforces the Convenience of Machine Software Operation
The built-in optimization software allows a PCB program to be easily created and edited.

HANWHA
DECAN L2

The DECAN series models can handle a wide range of components
and maximize productivity with various PCB transfer systems.

· Secures the applicability to components and conveyor flexibility.
· Reduces production time by optimizing the motion sequence.
· Reinforces odd-shape component recognition by applying 3D lighting system

Features

Productivity

Dual Lane PCB Transfer System
Realizes zero PCB loading/unloading time by loading the PCB on the opposite lane and having it stand by during operation (productivity increases by 15% compared to a single lane)


Flexible Production

Supporting Modular Conveyor System for Various Production Environments
Allows optimum combination of conveyor modules by applying a modular conveyor replaceable on site (Shuttle ↔ Dual).


High Reliability

Prevents Reverse Insertion by Recognizing the Polarity Mark at the Bottom Surface of a Component
Recognizes the polarity mark at the bottom surface of a component using the 3-stepped 3D lighting.

HANWHA

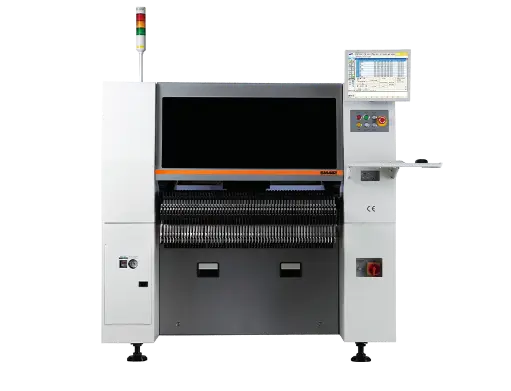

SM482 PLUS

Multi-Functional Place

SM series models are the best selling products and have been proven by many customers worldwide.

·Adopts high-pixel vision system allowing accurate placement of IC components.
·Easily registers complex shapes of components with the Polygon function.

Features :

Reliability

Adopts Powerful Camera Algorithm
Improves recognition accuracy with the component image noise removal function and automatic teaching function of components Corrects the pickup position of components such as Chip, TR, BGA and QFP automatically in real time

Easy Operation

Polygon Recognition Algorithm
Allows even the components of a complicated shape to be easily registered by extracting the component shape and recognizing it entirely.

Easy Operation

Multi-Vendor Component Management Function
When the same components are supplied from different component supply devices, allows them to be used without changing a PCB file and downloading it again.

3D AOI
PEMTRON

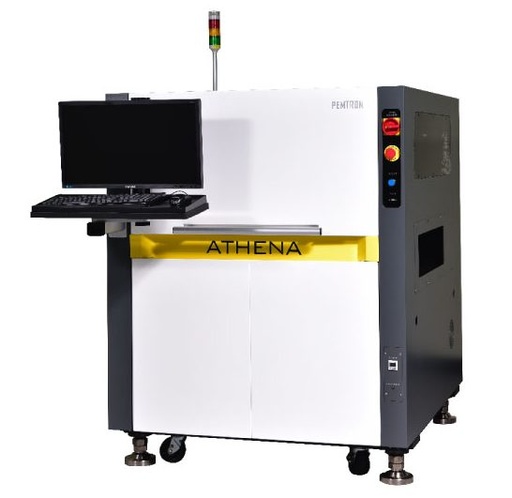

ATHENA Series
3D Automated Optical Inspection System

EAGLE 3D AOI Series
▶ Advanced 3D technology
▶ Stable and Accurate 3D realization by installing additional projectors
- 3D Formation of Chip among Dense Components and Narrow Parts
- 3D image Formation identical to a Real Image
▶ Improved Repeatability
- Accurate 3D inspection makes repeatability more reliable
▶ Simultaneous Inspection Algorithm (2D and 3D)
▶ Tele-centric Lens Offers Higher Accuracy & Detection
▶ High-Speed CPU & Image Process
▶ User-Friendly GUI
▶ Built in Library Management System
▶ Offline Real-Time Debug Station
▶ 4-Way side cameras (Optional)

3D Measurements Free from Shadows and Reflections
The EAGLE 3D 8800 AOI uses 8-way projection for 3D measurements on all models to minimize
errors due to shadow effects, and performs 100% 2D & 3D concurrently in all FOV areas.
This significantly reduces the false call while providing near-perfect detection.

Accurate and convenient inspection using side camera
Four high-definition cameras on the side and a dedicated algorithm optimized for both use and
side inspection is available for real-time inspection.

4-Way Side Camera (Optional)
Internal bridge detection not found in Top Camera
Connector internal detectable
Convenient Teaching Using Existing Algorithm

27mm high part 3D measurement/inspection
EAGLE 3D AOI offers the option of inspecting up to 30mm in height components with a unique PEMTRON technology."

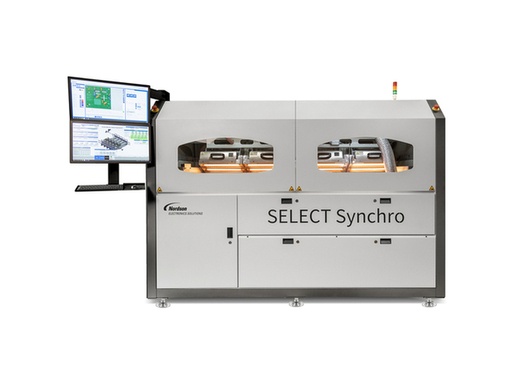

Non-Stop Selective Soldering Delivers Results
Choose from the Synchro 3, 5, or 5 XL, offering three or five soldering stations. All Synchro systems process several boards simultaneously, in various quantities, using different alloys and nozzles or a single fixed nozzle size. The system configuration includes a Microdrop drop-jet fluxer and can accommodate multiple solder nozzles to apply lead-free and leaded alloys.

The SELECT Synchro:
• Fast. Boards continuously travel through the system, boosting throughput by 20-40% for most applications, with more gain possible if conveyance and soldering times are comparable.
• Easy to use. Automatically balances soldering work between soldering pots for increased throughput.
• Compact. Due to the minimal pot and fluxer motion in the conveyor direction, all Synchro systems reduce the system footprint, with the Synchro 5 reducing footprint by as much as 60% compared to traditional multi-station systems.
• Flexible.Depending on the system, supports up to three or five solder pots, each with the ability to accommodate different nozzle sizes, eliminating the need to change nozzles.
• Dependable.. Forms reliable solder joints without overheating neighboring components to protect product performance.

Choose a System Package:
• Essential – The Synchro 3 and 5 systems offer non-stop selective soldering productivity for 2500 mm x 460 mm boards.
• Large-Scale – The Synchro 5 XL system offers non-stop selective soldering productivity for 2500 mm x 680 mm boards.

Base model includes:
• Three solder pots (Synchro 3).
• Five solder pots (Synchro 5).
• Independent areas for concurrent fluxing, preheating, and soldering.
• SMEMA compatible with positive board location.
• Automatic conveyor-width adjustment.
• MicroDrop drop-jet fluxer.
• Flux-level sensing.
• Top and bottom heaters.
• Full titanium solder pot and pump assembly.
• Quick-change magnetically coupled solder nozzle.
• SolderWorks Editor software for easy point-and-click programming.

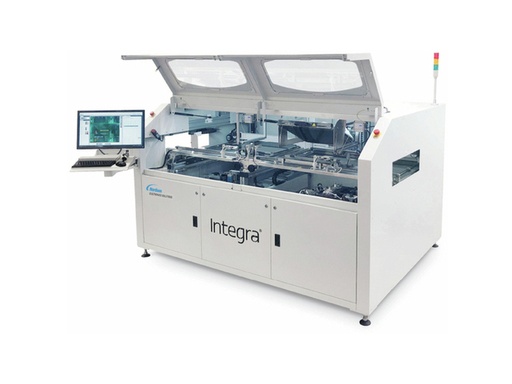

The Integra® 508.3 selective soldering system is ideal for high-volume production.

High Volume, Maximum Productivity
The multi-station, two-solder-pot Integra 508.3 combines fluxing, pre-heating, and soldering to increase throughput and reduce cycle time significantly.
Receive your essential selective soldering system with minimal lead time.

The Integra 508.3:
• Flexibility. The two-segment configuration can solder two boards in-line with two segmented conveyors without the boards being panelized or requiring tooling.
• Parallel processing. In-line parallel processing significantly increases throughput.
• Simple maintenance. Full titanium solder pots compatible with all solder alloys plus easy tool-free maintenance.

Essential System Capabilities
• Productivity – With two solder pots, a MicroDrop drop-jet fluxer, extensive pre-heat capabilities, two solder pots, and two-segment in-line parallel processing, the Integra 508.3 is essential for advanced productivity.

Base model includes:
• MicroDrop drop-jet fluxer.
• Flux-level sensing system.
• Two solder pots.
• Nozzle width measuring.
• Parallel soldering capabilities for panelized and non-panelized boards.
• Small and large nozzle soldering capabilities for boards up to 700 x 508 mm.
• SMEMA conveyor with positive board location.
• All titanium solder pot and pump assembly.
• Quick-change magnetically-coupled solder nozzles.
• SolderWorks Editor and machine control software.

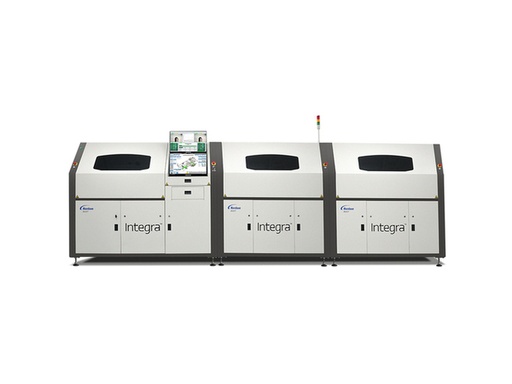

The Integra® 508.4 selective soldering system is ideal for high-volume production.
High Volume, Maximum Productivity
The multi-station, four-solder-pot Integra 508.4 combines fluxing, pre-heating, and soldering to increase throughput and reduce cycle time significantly.
Receive your essential selective soldering system with minimal lead time.

The Integra 508.4:
• Flexibility. The two-segment configuration can solder two boards in-line with two segmented conveyors without the boards being panelized or requiring tooling.
• Parallel processing. In-line parallel processing significantly increases throughput.
• Simple maintenance. Full titanium solder pots compatible with all solder alloys plus easy tool-free maintenance.

Essential System Capabilities
• Productivity Plus – With four solder pots, a MicroDrop drop-jet fluxer, extensive pre-heat capabilities, and two-segment in-line parallel processing, the Integra 508.4 takes advanced productivity to the next level.

Base model includes:
• MicroDrop drop-jet fluxer.
• Flux-level sensing system.
• Four solder pots.
• Nozzle width measuring.
• Parallel soldering capabilities for panelized and non-panelized boards.
• Small and large nozzle soldering capabilities for boards up to 700 x 508 mm.
• SMEMA conveyor with positive board location.
• All titanium solder pot and pump assembly.
• Quick-change magnetically-coupled solder nozzles.
• SolderWorks Editor and machine control software.

Selective Soldering Versatility

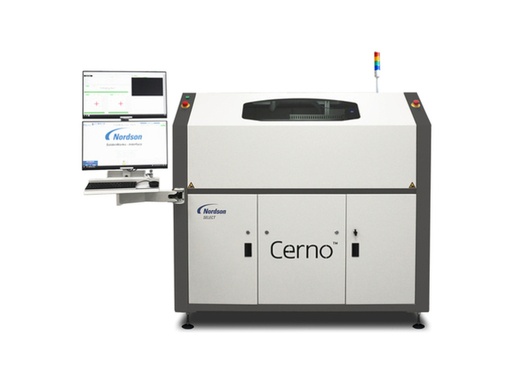

The Cerno 508.1 is an all-in-one system that combines fluxing, preheating, and soldering for easy integration into batch or in-line production.
Receive your selective soldering system with minimal lead time.

The Cerno 508.1:
Single or dual processing. Choice of single drop-jet fluxer and solder pot or dual drop-jet fluxers and dual solder pots for independent double processing.
Simple maintenance. Full titanium solder pots compatible with all solder alloys plus easy tool-free maintenance.
Flexibility. The two-segment configuration can solder two boards in-line with two segmented conveyors without the boards being panelized or requiring tooling.

Choose a System Package:
Essential – The Cerno 508.1 S offers single-pot selective soldering for batch and in-line production, accommodating boards up to 508 x 508 mm (20 x 20 in.).
Flexible Efficiency – The Cerno 508.1 Two-Segment offers dual-pot selective soldering in three modes for batch and in-line production, accommodating boards up to 350 x 508 mm (13.8 x 20 in.).

Base model includes:
MicroDrop drop-jet fluxer.
Flux-level sensing system.
One solder pot.
Nozzle width measuring.
SMEMA conveyor with positive board location.
All titanium solder pot and pump assembly.
Quick-change magnetically coupled solder nozzles.
SolderWorks Editor and machine control software.

VX air HK
Rehm Thermal Systems


The 3-in-1 solution for your soldering process.

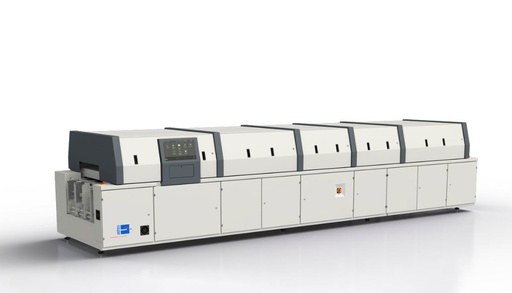

Vision TripleX: a patented new development in the field of convection and vapor phase soldering. The system is based on the reflow convection soldering systems in the Vision series and combines the convection soldering process with the proven vapor phase soldering process of the Condenso series. Thus, three processes can be carried out in the Vision TripleX: reflow convection soldering with and without vacuum and vapor phase soldering using Galden®. This provides uniquely flexible manufacturing options.

Vacuum chamber
Vacuum soldering is one of the three soldering processes integrated in the Vision TripleX. In just one process, a vacuum module enables convection soldering processes to be carried out with a vacuum. This reliably removes pores, gas occlusions and voids immediately after the soldering process whilst the solder is still in its optimal molten state. Complex processing of the assembly via an external vacuum system is no longer necessary and the workpieces are moved straight into the vacuum process from the peak zones.

Active Galden® filtering
After soldering, the assembly is passed onto the cooling process. Process gas is extracted and cleaned at the same time. Therefore, a large part of the Galden® can be reused, a solution that is particularly material-friendly and environmentally friendly! A vacuum is created during extraction which also ensures that soldering material is dried quickly.

Pyrolysis
During the soldering process, substances that are released from circuit boards, solder paste or components must be filtered out of the process gas. This is why the Vision TripleX has a residue management system which recycles and cleans the process gas in the system. It combines the effect mechanisms of pyrolysis in the preheating and peak range with cold condensation in the cooling zone. The pyrolysis is set up so that it only needs to be cleaned once a year, which results in long maintenance cycles, as well as a clean and dry process chamber.

VX Air "Air Reflow Soldering System"
with...
- Pin Chain Conveyor nickel plated (pin length 5 mm standard)
- PCB-widths from 50-508mm (with CBS 65-508mm)
- manual conveyor width adjustment (electrical - inching operation)
- top and bottom heating
- Fan Speed Regulation 1 included , heating Top
- Fluxmanagement FFS (Flux Filter System)
- flatscreen monitor ( Touch 23" )and signal tower (three-coloured) build-in
- Industrial PC-control with Ethernet-network-interface (RAID hard disk)
- Vicon Software with Windows 11 IoT Enterprise LTSC 2024 (with RAID1-System)
- colour: SN700 (Light Basic)
- Hoods front side / hoods bridge: RAL 7015 (slate grey)
- CE conformity
- Integrated Exhaust fan

VXP+ (V1) nitro Inert Reflow Soldering System
Rehm Thermal Systems

Energy-efficient system facilitates low-maintenance manufacturing
The VisionXP+ is our "best in class" reflow convection soldering system, which is clearly in line with the trend towards the sustainable management of resources. With a particular focus on energy efficiency, reducing emissions and operating costs, EC motors were integrated into the VisionXP+ and these enable you to save on energy in a provable manner. The option of carrying out vacuum soldering enables you to create a time-efficient and stable production procedure, as well as to reduce voids, in order to ensure low-maintenance manufacturing. With the VisionXP+, you have various options available to you for gentle cooling, including underside cooling. With this, especially high-mass boards in particular can be cooled easily.
Vacuum chamber
With the VisionXP+. we offer innovative solutions for reflow soldering. In just one process, a vacuum module enables convection soldering processes to be carried out with a vacuum. This reliably removes pores, gas occlusions and voids immediately after the soldering process whilst the solder is still in its optimal molten state. Complex processing of the assembly via an external vacuum system is no longer necessary and the workpieces are moved straight into the vacuum process from the peak zones.

Rehm CoolFlow
In cooperation with Air Liquide, we developed an innovative cooling principle for more efficient use of the nitrogen required for inertisation and built the first reflow soldering system without any cooling water with a nitrogen cooling system. The cryogenic liquid nitrogen (as cold as –196°C) provides its cooling properties inside the system’s cooling zone, evaporates and can then be used for inertisation in its gaseous state. This means that the system is provided both with the required cooling properties and the inert atmosphere. The cooling water, which previously required high energy use for cooling, including cooling unit and refrigerant, is completely eliminated.

Pyrolysis
During the soldering process, substances that are released from circuit boards, solder paste or components must be filtered out of the process gas. This is why the VisionXP+ has a residue management system which recycles and cleans the process gas in the system. It combines the effect mechanisms of pyrolysis in the preheating and peak range with cold condensation in the cooling zone. The pyrolysis is set up so that it only needs to be cleaned once a year, which results in long maintenance cycles, as well as a clean and dry process chamber.

SSP+
In comparison with the SSP, the SSP+ is characterised by a further setting option at high temperature differences between the individual heating zones. Since from a zone with a high temperature, this temperature is transferred to the neighbouring zone, it may be necessary to actively cool this zone on an ongoing basis in order to ensure the right temperature profile. The in-house extraction system permanently draws in the colder surrounding air and thus ensures precise temperature resistance in the respective zone. The heat which is transferred from neighbouring zones is reduced drastically like this, which ensures optimum zone division.

VXP+ (V1) nitro Inert Reflow Soldering System with...
- top and bottom heating
- fan speed control (1x heating top / 1x heating bottom / 1x cooling section)
- Software control for fan speed regulation
- integr. cooling circuit and heat exchanger for connection to ext. facility water supplies
- integrated pyrolyse system
- manual conveyor width adjustment (electrical - inching operation)
- flatscreen monitor and signal tower (three-coloured)
- PCB-width from 55-508mm (with CBS 65-508mm)
- with pin chain conveyor nickel plated 5 mm standard
- Industrial PC-control with Ethernet-network-interface
- Vicon Software with Windows 11 IoT Enterprise LTSC 2024 (with RAID1-System)
- CE conformity
- Stand-by operation (nitrogen- and power saving)
- incl. transmission zone for finer adjustment of cooling gradient
- Basic color: SN 700 light basic
- Hoods front side / hoods bridge: RAL 7015 slate grey
- Rehm Analytics Recorder
- Passage direction left to right

HANWHA
SM471 PLUS

Fast Chip Shooter

SM series models are the best selling products and have been proven by many customers worldwide.

· High-performance chip shooter with a new fly camera
· World's highest speed of 78,000CPH among chip shooters of the same class
· With two gantry dual-lane construction, supports various production modes

Productivity

On-the-fly Placement Method
Possible to recognize a component without stopping while moving after component pickup Minimizes the moving time between pickup and placement positions and ensures zero recognition time
Performance

Dual Lane Shuttle Conveyor
Maximizes the productivity of small boards through dual lane production Secures scalability to large boards using a shuttle conveyor

Reliability

Component Monitoring before/after Placement
Inspect a nozzle for contamination during production to prevent non-inserted and dumped components in advance.

Easy Operation

Easy Component Registration (New Part Editor)
Possible to register component information with the clicking of a mouse by applying a Drag & Drop based component registration system

MSTECH Europe
Classic-DTMML-250

"Dual track multi Magazine (mm) loader, Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 330x250; PCB Min. (mm): 50x50; Magazine (mm): 355x320x560

Application:

This system is designed to load the PCBs into the SMT line, with the capability to handle the dual lane transportation functions, it can be selected by the customer for the different working mode.

The machine is with a special pusher design, and allowed a very impact dimensions and helped the customer to save the line length.


1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.

Features

• Efficient management of Good & No good boards from upstream system

• Dual lane high speed unloader function are selectable in the software

• Multi magazine capability to handle total 6 magazines (Optional)

• Panasonic connect PLC program control

• Selectable pitch settings from 10mm to 80mm;

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the rear of magazine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

MSTECH Europe
Classic-DTMML-330

"Dual track multi Magazine (mm) loader; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 440x330; PCB Min. (mm): 50x50; Magazine (mm): 460x400x563
Application:

This system is designed to load the PCBs into the SMT line, with the capability to handle the dual lane transportation functions, it can be selected by the customer for the different working mode.

The machine is with a special pusher design, and allowed a very impact dimensions and helped the customer to save the line length.



1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.
Features

• Efficient management of Good & No good boards from upstream system

• Dual lane high speed unloader function are selectable in the software

• Multi magazine capability to handle total 6 magazines (Optional)

• Panasonic connect PLC program control

• Selectable pitch settings from 10mm to 80mm;

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the rear of magazine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform."

MSTECH Europe
Classic-DTMML-390

Dual track multi Magazine (mm) loader; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 530x390; PCB Min. (mm): 50x50; Magazine (mm): 535x460x570
Application:

This system is designed to load the PCBs into the SMT line, with the capability to handle the dual lane transportation functions, it can be selected by the customer for the different working mode.

The machine is with a special pusher design, and allowed a very impact dimensions and helped the customer to save the line length.



1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.

Features

• Efficient management of Good & No good boards from upstream system

• Dual lane high speed unloader function are selectable in the software

• Multi magazine capability to handle total 6 magazines (Optional)

• Panasonic connect PLC program control

• Selectable pitch settings from 10mm to 80mm;

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the rear of magazine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform."

MSTECH Europe
Classic-DTMML-460

Dual track multi Magazine (mm) loader; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 535x460; PCB
Min. (mm): 50x50; Magazine (mm): 535x530x570

Application:

This system is designed to load the PCBs into the SMT line, with the capability to handle the dual lane transportation functions, it can be selected by the customer for the different working mode.

The machine is with a special pusher design, and allowed a very impact dimensions and helped the customer to save the line length.


1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.

Features

• Efficient management of Good & No good boards from upstream system

• Dual lane high speed unloader function are selectable in the software

• Multi magazine capability to handle total 6 magazines (Optional)

• Panasonic connect PLC program control

• Selectable pitch settings from 10mm to 80mm;

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the rear of magazine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

MSTECH Europe
Classic-DTMML-Flex

All size Magazine (mm) version; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): All sizes; PCB Min. (mm): 50x50; Machine Size (mm): Motorized conveyor width adjustment; Magazine (mm): 355x320x563 / 460x400x563 / 535x460x570 / 535x530x570

Application:

This system is designed to load the PCBs into the SMT line, with the capability to handle the dual lane transportation functions, it can be selected by the customer for the different working mode.

The machine is with a special pusher design, and allowed a very impact dimensions and helped the customer to save the line length.



1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.
Features

• Efficient management of Good & No good boards from upstream system

• Dual lane high speed unloader function are selectable in the software

• Multi magazine capability to handle total 6 magazines (Optional)

• Panasonic connect PLC program control

• Selectable pitch settings from 10mm to 80mm;

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the rear of magazine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

MSTECH Europe
Classic-MML-250

"Multi Magazine (mm) loader; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 330x250; PCB Min. (mm): 50x50; Machine Size (mm): 1265x740x1650; Magazine (mm): 355x320x563

Application:

The multi magazine loader is used when a magazine of PCB boards needs to be loaded into a production line, this units is capable of handling total 4 units of magazine that can be easily be accessed from the front of the machine, it is used in high volume applications.

1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.

Features

• Panasonic PLC program control

• magazine capacity: 4 magazine (Top 1+ down 2+ middle 1)

• Selectable pitch settings

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the rear of magazine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

• SMEMA compatible "
