PCB Size: 740*510 mm

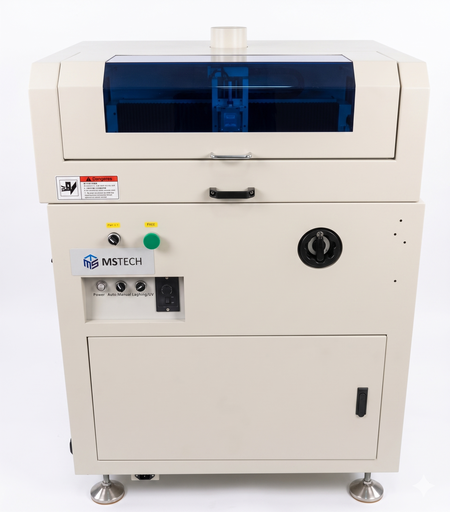

UV-900 AT021043 Curing Conveyor model: CC-900 MSTECH AT021043

Product Description
The MSTECH CC‑900 (AT021043) Curing Conveyor is a high‑performance inline system designed to cure, dry, or stabilize coatings and adhesives applied to electronic assemblies. Its controlled conveyor platform and optimized thermal or UV curing modules ensure consistent results, fast processing, and high reliability for industrial production environments.

Key Features
900 mm curing tunnel for medium‑to‑high production volumes

Adjustable conveyor speed for precise curing control

Uniform thermal or UV curing (depending on configuration)

Energy‑efficient heating and airflow system

Compatible with conformal coatings, adhesives, inks, and resins

Fully inline integration with coating, dispensing, and inspection equipment

Benefits
Ensures stable, repeatable curing quality

Reduces cycle time and increases throughput

Minimizes defects caused by improper drying

Supports continuous automated production

Durable, low‑maintenance industrial design

Applications
PCB conformal coating curing

Adhesive and sealant curing

UV ink and resin polymerization

Electronics assembly and protection processes

Automotive, LED, and industrial electronics manufacturing

Why Choose the CC‑900
The CC‑900 stands out for its precision, speed, and integration flexibility, making it ideal for manufacturers who need consistent curing performance and seamless inline automation.

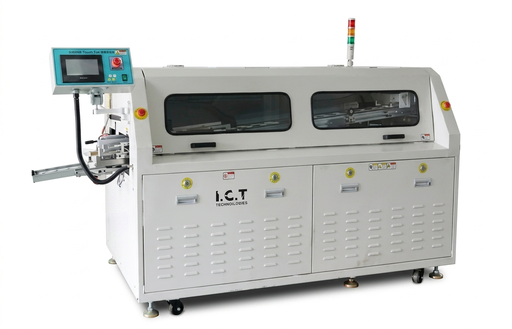

MSTW2
AT021368

2900x1160x1500mm
Weight: 790 kg 3P5W,
380/220V 50Hz 16kw 7kw
Specifications: Max:450x400mm
* With fluxer
* Without fingers
* Transport by chain

SC-1500
AT022868

Specifications:
1. Max.PCB Size: 740*510mm
2. Upper transmission height: 950±20mm
Lower transmission height：350±20mm
3. Transmission method: Chain pin length 5mm
4. Bearing capacity: 12KG
5. Language: All English logo
6. Rail fixing side: front rail
7. Signal connection: SMEMA head
8. Conveyor cover with saftey sensor(CE)
9. Conveyor with auto type lifting door
10. There are 2 strips of LED lights on the door to show the status of the upper and lower boards.
11. Panasonic touch screen
12. Panasonic PLC with network port
13. CE standard electrical appliances and circuit design
14. With UV detection lamp
15. Dimensions ：1500*1180*1480

Disposition:
1. Voltage: AC220V, 50/60Hz
2. Plug: European standard
3. Transfer direction: Left to Right
4. Panasonic display

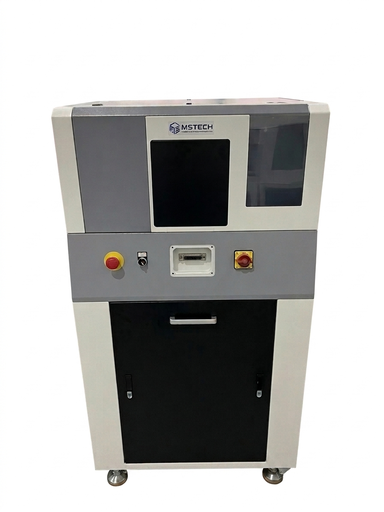

CFD - Flipper
AT022880

Supported PCB size range: Minimum 50 x 50 mm up to a maximum of 750 x 510 mm (or larger).
Track width adjustment: Automatically motorized via ball screw (controlled from the touchscreen) to accurately and evenly support the 510 mm width.
Flipping mechanism: Closed-loop servo motor instead of a standard pneumatic piston. This ensures a smooth, controlled, and vibration-free 180° rotation for large and heavy boards.
Board clamping: Pneumatic clamps or precision stops to prevent the 740 mm long PCB from slipping or warping during rotation.

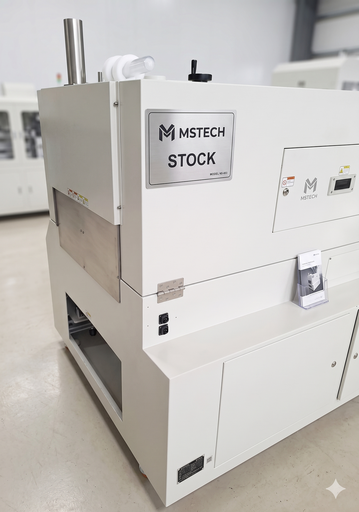

PCBA UVMERCUR AT021102 Curing Oven - UVMercury - Classic
The UVMercury Classic Curing Oven is a precision‑engineered thermal curing system built for industrial environments that demand reliability, uniform heat distribution, and long‑term durability. Its robust construction and optimized airflow ensure stable temperature performance, making it ideal for curing paints, resins, composites, inks, and UV‑sensitive materials.

Key Features
Uniform Heat Distribution — Advanced airflow design ensures consistent curing results across all surfaces.

High‑Efficiency Insulation — Minimizes heat loss and reduces energy consumption during continuous operation.

Digital Temperature Control — Accurate, programmable settings for precise curing cycles.

Durable Steel Construction — Built to withstand demanding industrial use with long service life.

Safety Protection System — Includes over‑temperature protection and secure door‑locking mechanisms.

Versatile Applications — Suitable for coatings, adhesives, UV materials, electronics, automotive parts, and more.
Typical Applications
Powder Coating

UV Resin Curing

Adhesive Bonding

Electronic Component Processing

Automotive Finishing


Technical Highlights (generic, adjustable to your model)
Temperature range: 50°C – 250°C

Heating method: Convection / UV‑assisted (depending on configuration)

Control panel: Digital PID controller

Chamber material: High‑grade stainless steel

Power options: Single‑phase or three‑phase

Optional: Timers, shelves, UV modules, exhaust system

Why Choose the UVMercury Classic?
The UVMercury Classic stands out for its reliability, precision, and adaptability. Whether used in small workshops or large‑scale production lines, it delivers repeatable curing quality and low maintenance requirements, making it a cost‑effective solution for professional manufacturing environments.

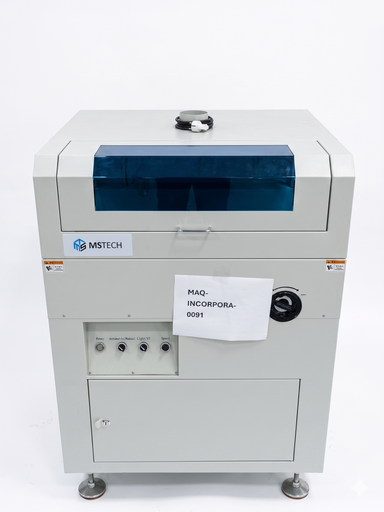

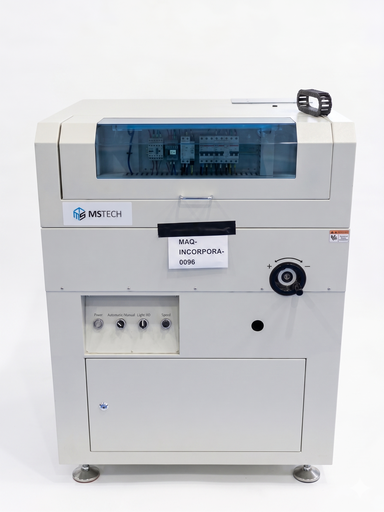

SC-900 AT022764 Seal UV Conveyor SC-900 for max PCB 450 mm MSTECH AT022764

Specifications：
1. Maximum PCB width: 450mm
2. Transmission height: 900±20mm
3. Language: English，waterproof with UV light
4. Rail fixing side: front rail
5. Signal Connection: SMEMA head
6. Dimension:900*880*1330mm
7. Weight: 200Kg

Configuration：
1. Voltage: AC220V, 50/60Hz
2. Plug: European Standard
3. Direction: Left to Right

LIFTER
AT021096

Specifications:
1. Max.PCB Size: 740*510mm
2. Upper transmission height: 950±20mm
Lower transmission height：350±20mm
3. Transmission method: Chain pin length 5mm
4. Bearing capacity: 12KG
5. Language: All English logo
6. Rail fixing side: front rail
7. Signal connection: SMEMA head
8. Conveyor cover with saftey sensor(CE)
9. Conveyor with auto type lifting door
10. There are 2 strips of LED lights on the door to show the status of the upper and lower boards.
11.Panasonic touch screen
12.Panasonic PLC with network port
13.CE standard electrical appliances and circuit design
14.Dimensions ：800*1180*1480

Disposition:
1. Voltage: AC220V, 50/60Hz
2. Plug: European standard
3. Transfer direction: Left to Right
4. Panasonic display

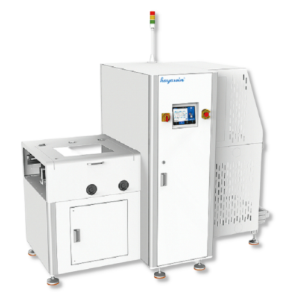

LD-LL AT022497 Loader model: LD-LL MSTECH AT022497
The LD‑LL MSTECH AT022497 is a high‑precision loading system designed for semiconductor and micro‑electronics production lines. It automates the transfer of wafers, substrates, or microchip panels into processing equipment, ensuring clean, stable, and contamination‑free handling throughout the manufacturing cycle.

Built for Class‑controlled environments, this loader delivers exceptional accuracy, smooth motion control, and high throughput, making it ideal for front‑end and back‑end semiconductor processes.

Cleanroom‑Ready Design — Materials and construction suitable for controlled environments used in microchip fabrication.

Precision Loading Mechanism — Ensures gentle, accurate handling of wafers or microchip panels.

Anti‑Static Protection — Prevents electrostatic discharge (ESD) that could damage semiconductor components.

Smart Control Interface — Digital or PLC‑based system for speed, timing, and process configuration.

High Throughput Operation — Optimized for continuous production with minimal downtime.

Seamless Equipment Integration — Compatible with ovens, inspection systems, etching machines, and assembly modules.

TN-BCH-280-1000D
BC240703310

Height & Frame: 1000mm high-version profile constructed with robust, anti-static materials.
Independent Tracking: Two distinct lanes that can handle different PCB boards simultaneously or run in parallel.
Control: Programmable Logic Controller (PLC) with an HMI Touch Screen interface for independent speed and width control.
Segmented Design: Twin-segment configuration that allows boards to be stopped or routed dynamically between connected workstations.
Max. PCB: 950x460mm

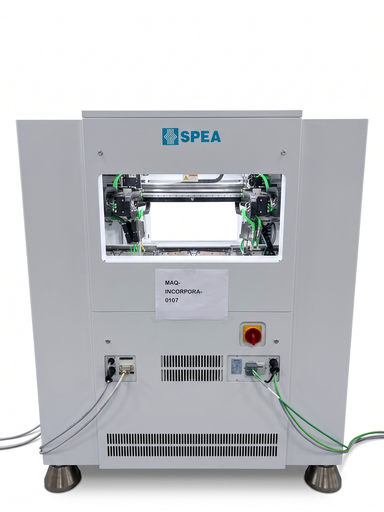

4050s2 FBZ313CB 4050S2 MSTECH FBZ313CB

The MSTECH 4050S2 FBZ313CB is a next‑generation semiconductor automation module designed to support high‑accuracy, contamination‑free handling of wafers, substrates, or microchip panels. Built for cleanroom environments, it ensures stable operation, precise alignment, and high throughput, making it ideal for both front‑end and back‑end microelectronics manufacturing.

Its reinforced structure, intelligent motion control, and ESD‑safe design guarantee consistent performance in demanding semiconductor workflows.

IR CURING OVEN-IR3 PC-2022-0138-03

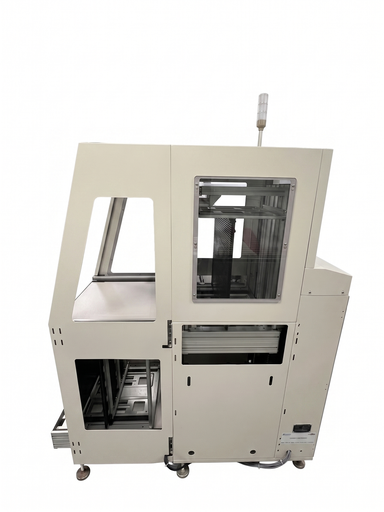

The ETA Holding UL‑LL MSTECH AT022498 is a cleanroom‑ready automated unloader designed for semiconductor, PCB, and micro‑electronics manufacturing. It safely removes processed panels, wafers, or substrates from upstream equipment—such as curing ovens, inspection systems, or assembly modules—while maintaining contamination‑free handling and high throughput.

Its precision motion system, ESD‑safe construction, and intelligent control interface ensure stable, repeatable performance, making it ideal for advanced microchip fabrication environments.

* with SMEMA

Specifications：
1. Maximum PCB width: 450mm
2. Transmission height: 900±20mm
3. Language: English，waterproof with UV light
4. Rail fixing side: front rail
5. Signal Connection: SMEMA head
6. Dimension:900*880*1330mm
7. Weight: 200Kg

Configuration：
1. Voltage: AC220V, 50/60Hz
2. Plug: European Standard
3. Direction: Left to Right

SC-1550 AT021488 Conveyor model: SC-1500 MSTECH

The SC‑1550 (AT021488), based on the SC‑1500 conveyor platform, is a high‑precision transfer conveyor designed for electronics and semiconductor manufacturing.
With its extended length and reinforced frame, it provides reliable board handling, excellent alignment stability, and seamless integration between upstream and downstream equipment such as loaders, unloaders, UV conveyors, curing ovens, and inspection modules.

Its adjustable width system allows it to accommodate a wide range of PCB sizes, making it ideal for modern SMT and microchip production environments that require high throughput and consistent transport quality.

SC-1500 AT022869 Manual Loader-Unloader conveyor with UV light XL MSTECH AT022869
Specifications:
1. Max.PCB Size: 740*510mm
2. Upper transmission height: 950±20mm
Lower transmission height：350±20mm
3. Transmission method: Chain pin length 5mm
4. Bearing capacity: 12KG
5. Language: All English logo
6. Rail fixing side: front rail
7. Signal connection: SMEMA head
8. Conveyor cover with saftey sensor(CE)
9. Conveyor with auto type lifting door
10. There are 2 strips of LED lights on the door to show the status of the upper and lower boards.
11. Panasonic touch screen
12. Panasonic PLC with network port
13. CE standard electrical appliances and circuit design
14. With UV detection lamp
15. Dimensions ：1500*1180*1480

Disposition:
1. Voltage: AC220V, 50/60Hz
2. Plug: European standard
3. Transfer direction: Left to Right
4. Panasonic display

KTR-1000-N 21R10N21 Lead free Oven model: MSTR-1000 with Nitrogen Option MSTECH 21R10N21

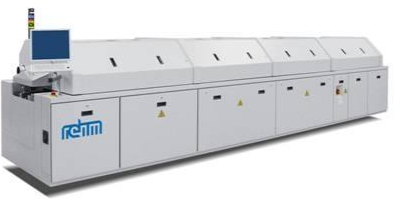

HORNO VXS NITRO 3500 3905 VXS nitro 3500 (Type 734) MSTECH 3905

The VXS Nitro 3500 (Type 734) is a professional nitrogen‑compatible reflow system engineered for high‑reliability SMT assembly. It provides a controlled thermal environment optimized for lead‑free soldering, ensuring consistent heating profiles and improved wetting performance.

By introducing nitrogen into the reflow chamber, the system significantly reduces oxidation on solder joints and component leads, resulting in cleaner finishes, stronger joints, and higher production yield. Its stable conveyor transport and multi‑zone temperature control make it suitable for medium‑to‑high‑volume electronics manufacturing.

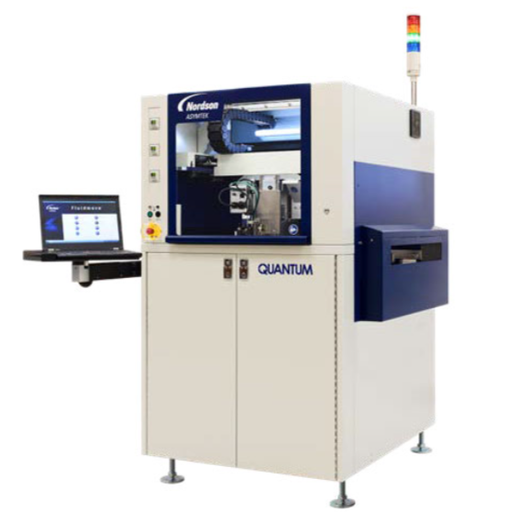

EQUIPS DEMO ASYMTEK Q-6800 Q30043 Q-6800

The Q‑6800 is a precision PCB transfer system engineered for automated electronics manufacturing environments. Built with a reinforced frame and smooth‑motion conveyor mechanism, it ensures reliable board transport, accurate alignment, and stable operation between upstream and downstream SMT equipment.

Its adjustable width system allows the Q‑6800 to handle a wide range of PCB formats, making it suitable for assembly lines requiring flexibility, repeatability, and consistent process flow. The ESD‑safe construction protects sensitive electronic components, while the digital control interface provides easy adjustment of speed and operating modes.

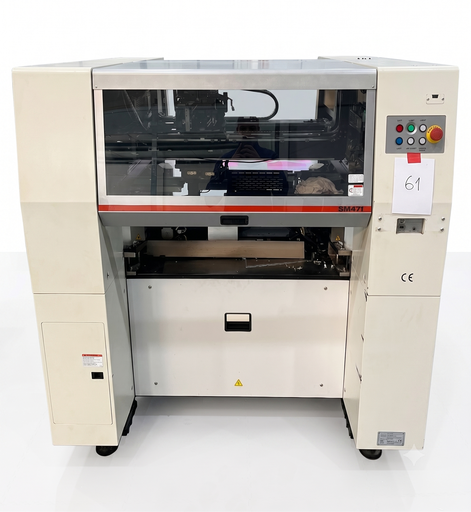

SM471 C8-1277 HIGH SPEED FLEXIBLE MOUNTER SM471 Plus SMART C8-1277

The SM471 Plus is a high‑speed, dual‑gantry pick‑and‑place mounter engineered for modern SMT production lines requiring both speed and flexibility. Equipped with advanced vision algorithms, high‑precision linear motors, and a robust feeder system, it delivers exceptional placement performance across a wide component range—from ultra‑small chips (0201 metric) to large ICs.

Its optimized architecture allows simultaneous operation of two high‑speed gantries, significantly increasing throughput while maintaining stable, repeatable accuracy. The SM471 Plus is ideal for high‑volume electronics, automotive PCBs, industrial controls, and multi‑layer assemblies.
▶ Speed : 78,000CPH
▶ Structure : 2 Gantry x 10 Spindles/Head
▶ Parts : 0402(01005")~ㅁ14mm(h12mm)
▶ Accuracy : ±40㎛@±3σ/Chip
±50㎛@±3σ/QFP
▶ PCB Size : L510xW460(Standard)
L610xW460(Option)

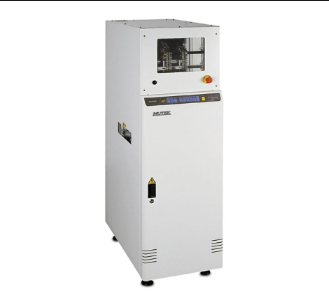

TN-CB460C CB240703011 Multi Function LIFO Vertical Buffer MSTECH CB240703011

The Multi‑Function LIFO Vertical Buffer is an advanced PCB buffering module engineered to manage workflow variations in automated SMT lines. Using a vertical magazine‑style lift system, it stores PCBs in a LIFO sequence, allowing the line to continue running smoothly even when upstream or downstream equipment slows down, pauses, or requires inspection time.

Its compact vertical design saves floor space while providing high‑capacity buffering, precise PCB handling, and stable, contamination‑free storage. This makes it ideal for high‑mix, high‑volume, or variable‑speed production environments.

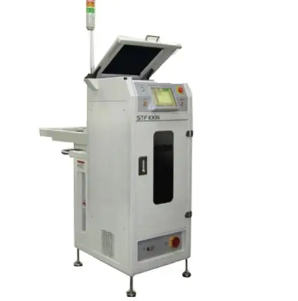

TRAY FEEDER STF-100N LF-0975-F7 20 STEP MATRIXSIDE TRAY HANDLER STF-100N MSTECH LF-0975-F7

The STF‑100N MatrixSide Tray Handler is a 20‑step automated tray handling module engineered for stable, contamination‑free transfer of JEDEC trays or matrix trays used in microchip, IC, and component packaging processes.
Its vertical multi‑step elevator stores and moves trays in sequence, enabling continuous production, smooth buffering, and efficient tray exchange without interrupting upstream or downstream equipment.

Built with an ESD‑safe frame, precision lift mechanics, and a smart control interface, the STF‑100N ensures repeatable positioning, gentle component handling, and high‑capacity tray management in demanding semiconductor environments.
